| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 1 mm |
| Application | | Holder for T-Insert 60° | | Depth of Cut Maximum (APMX) | 3.5 mm |
| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.15 mm |
| Cutting Edge Length (L) | 15.5 mm | Max. Turning Feed (ft(max)) | 0.4 mm |
| Insert Thickness (S) | 4.76 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.52 mm | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
| Grade | TT5100 |
Product Features
| Family Description | for medium roughing / tough rake angle | FamilyName | TNMG MT |
| COO | South Korea | BrandName | Ingersoll GMBH |
Shipping Info
Weight per item
0.0084
Name

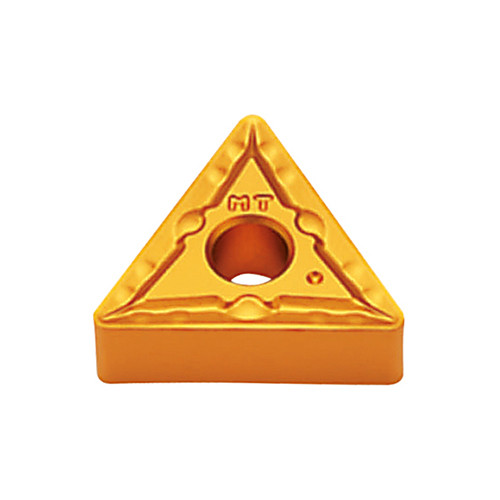

Turning Indexable Inserts
FamilyName
TNMG MT
BrandName
Ingersoll GMBH
