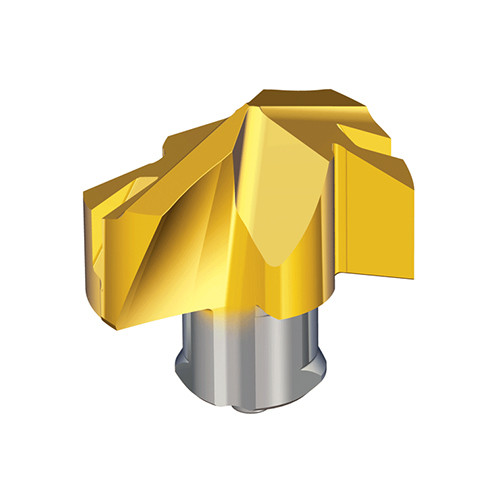

TCD-249-M TT9080
Exchangeable drill heads for stainless steel of ISO M material

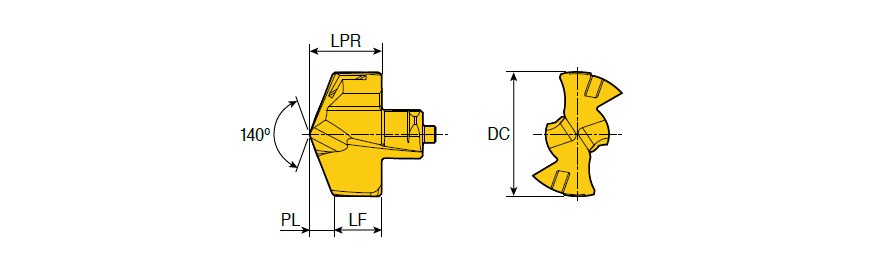

| Cutting Diameter (DC) | 24.9 mm | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Measurement Type | Metric |
| Application | | Drilling | Hole Making Inserts | | Point Length (PL) | 3.78 mm |
| Grade | TT9080 | Coating | TiAlN+TiN |
| Protruding Length (LPR) | 13.9 mm | Body Material | Carbide |
| Insert Seat Size Code (SSC) | 24 | Unit | M |
| Functional Length (LF) | 10.12 mm |
Product Features
| Family Description | Exchangeable drill heads for stainless steel of ISO M material | COO | S.KOREA |
Shipping Info
Weight per item
0.0510
