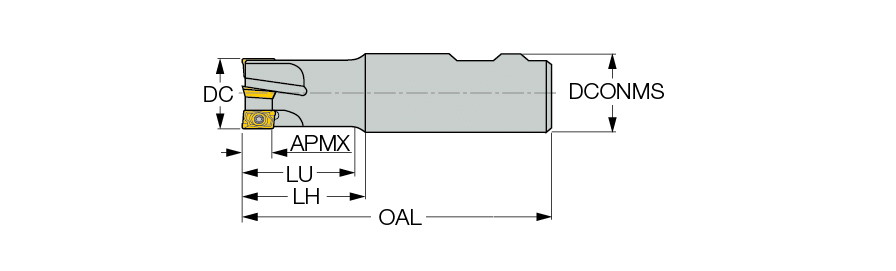

| Cutting Diameter (DC/DCX) | 25 mm | Functional Length (LF) | 118 mm |

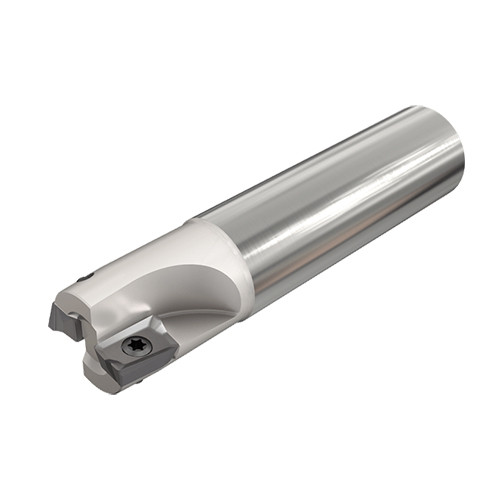

| Cutting Diameter (DC) | 25 mm | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 69 mm |
| Depth of Cut Maximum (APMX) | 14.3 mm | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 150 mm | Coolant Supply Property (CSP) | External |

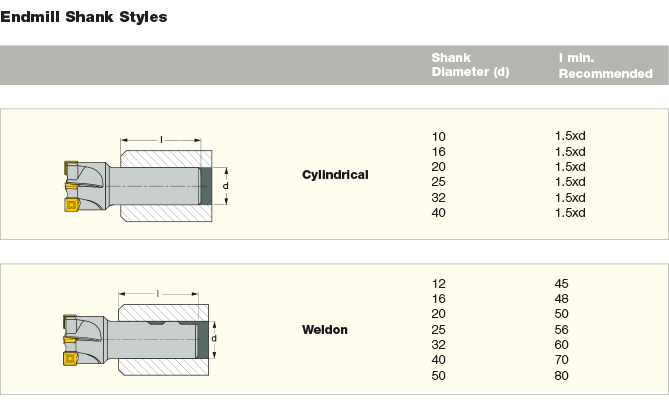

| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 11.5 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Body Material | Steel |
| Master Insert Identification (MIID) | ADKT 1505PDTR | Connection Code Machine Side (CCMS) | Weldon |
| Head Length (LH) | 70 mm | Unit | M |
Product Features
| Family Description | 90° endmills carrying HM90 ADKT-1505... inserts. | FamilyName | HM90 E90AD-15 |
| Remarks | 1- with standard square insert 2- with FF (fast feed) insert For adaptation, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.6310
Name
Indexable End Mills
FamilyName
HM90 E90AD-15
BrandName
Iscar
