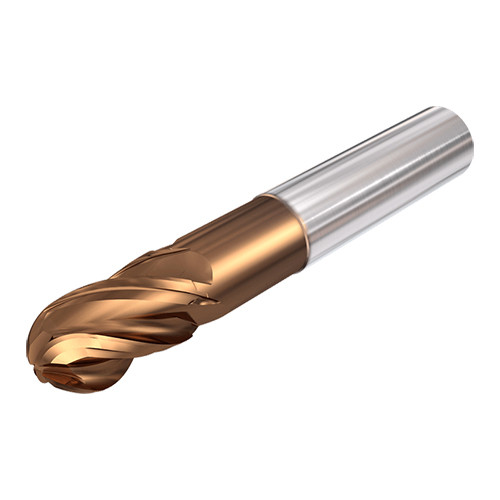

EBI-4 250-500/1.25CVF3 IC608

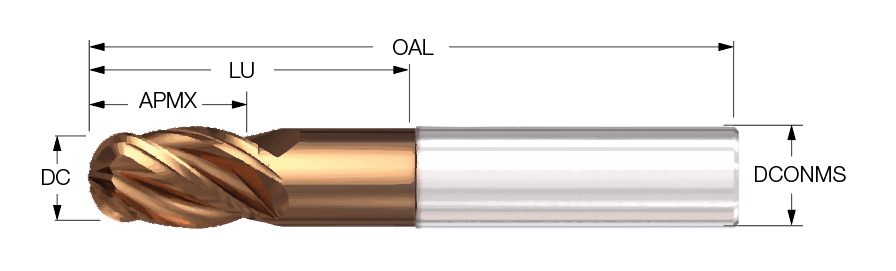

| Cutting Diameter (DC) | 1/4″ | Corner Radius (RE) | 1/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Neck Diameter (DN) | 0.235″ |
| Depth of Cut Maximum (APMX) | 1/2″ | Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 3″ | Grade | IC608 |
| Cutting Edge Material | Carbide | Tool Type | Solid ball nose |
| Coating | AlTiCrSiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.25″ |
| Usable Length (LU) | 2-1/4″ | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Slotting | | Unit | I |
Product Features
| Family Description | 4 flute ball nose endmills with and without relieved necks | FamilyName | EBI-4-VF |
| Remarks | Each item is also available with a Weldon shank. Substitute a W in place of the C in the listed designations (example: EBI-4 375-1.0CVF2.5 = cylindrical type; ECI-4 375-1.0WVF2.5 = Weldon type) | BrandName | Iscar |
| COO | USA |
Shipping Info
Weight per item
0.0728
Name
Ballnose End Mills
FamilyName
EBI-4-VF
BrandName
Iscar
