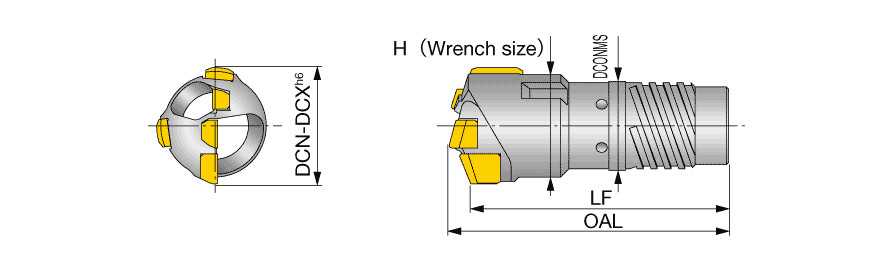

| Application | | BTA system | | Cutting Diameter Minimum (DCN) | 32.11 mm |
| Measurement Type | Metric | Connection Diameter Machine Side (DCONMS) | 28 mm |
| Overall Length (OAL) | 63.5 mm | Body Material | Carbide |
| Cutting Diameter Maximum (DCX) | 33.3 mm | Unit | M |
Product Features

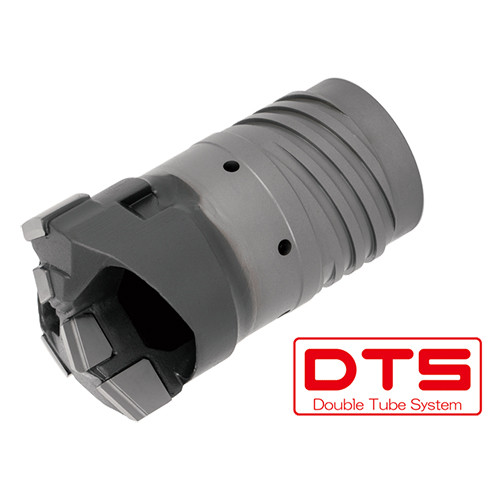

| Family Description | Brazed drill head with external 4-start thread for double tube system (DTS), dia=18.4 - 65mm, CICT = 3, for general purpose | COO | JAPAN |
| Remarks | These products are made to order on request. |
Shipping Info
Weight per item
0.0000
