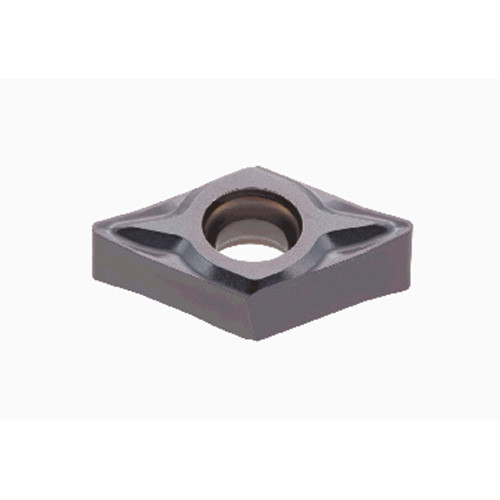

DXGU070301MFR-JSS SH725
Double sided 55deg rhombic inserts with JSS chipbreaker for finishing (low cutting force)
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Depth of Cut Maximum (APMX) | 1.5 mm |
| Application | | Inserts | | Min. Turning Feed (ft(min)) | 0.03 mm/rev |

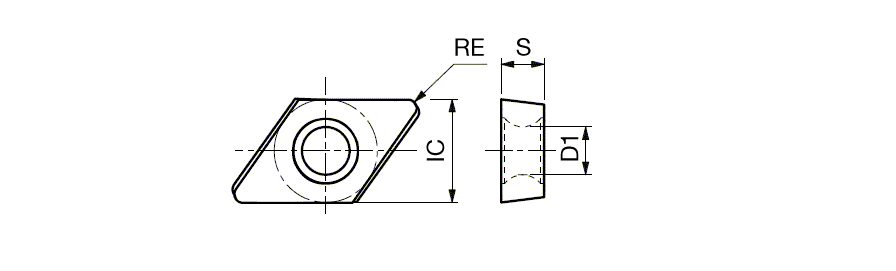

| Corner Radius (RE) | 0.1 mm | Max. Turning Feed (ft(max)) | 0.1 mm/rev |
| Insert Thickness (S) | 3.18 mm | Clearance Angle Major (AN) | 5 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide | Chip Breaker Type | MFT-JSS |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | SH725 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 2.7 mm | Cutting Edge Effective Length (LE) | 7.51 mm |
| Tool Type | Turn Positive Inserts | Unit | M |
| Min D.O.C. | 0.1 mm |
Product Features
| Family Description | Double sided 55deg rhombic inserts with JSS chipbreaker for finishing (low cutting force) | FamilyName | DXGU-JSS |
| Remarks | "F" included in designation means sharp edge. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0290
Name
Turning Indexable Inserts
FamilyName
DXGU-JSS
BrandName
Tungaloy
